SFBR Sand Filter Backwash Recycle System
Conserve Water, Save Energy by Recycling Your Sand Filter Backwash
Save up to 90% of makeup water costs, added heating costs, and sewage costs

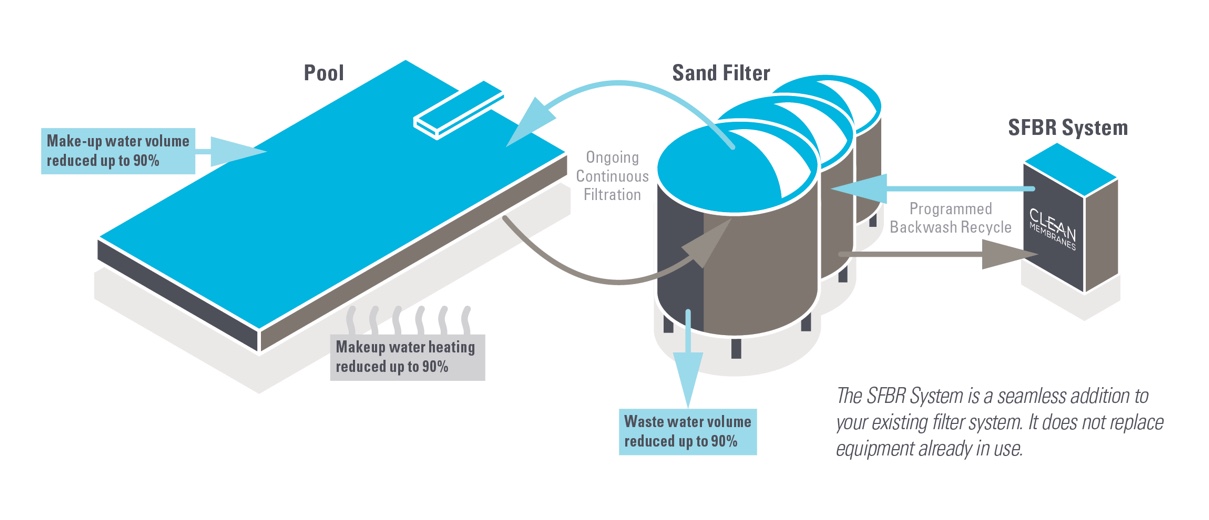

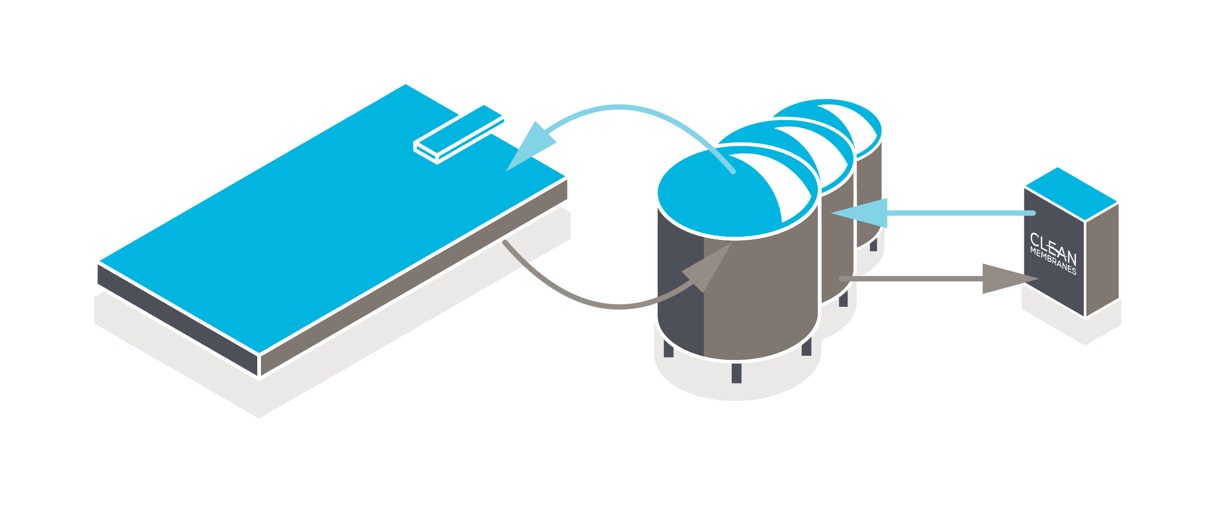

New SFBR Sand Filter Backwash Recycle System from Clean Membranes significantly reduces the operating cost of swimming pool maintenance by recycling sand filter backwash effluent. It’s an ideal system for competition pools, high school and university pools, water parks and resorts, and municipal swimming pools. This innovative system is designed specifically for swimming pools and is based on long-lasting ultrafiltration membrane technology.
System acquisition costs are typically less than one year for a 50 meter (660,000 gallon) Olympic-sized pool. We work with leading aquatic center/competition pool design firms and facility managers for seamless integration and installation of this automatic, low-maintenance system.

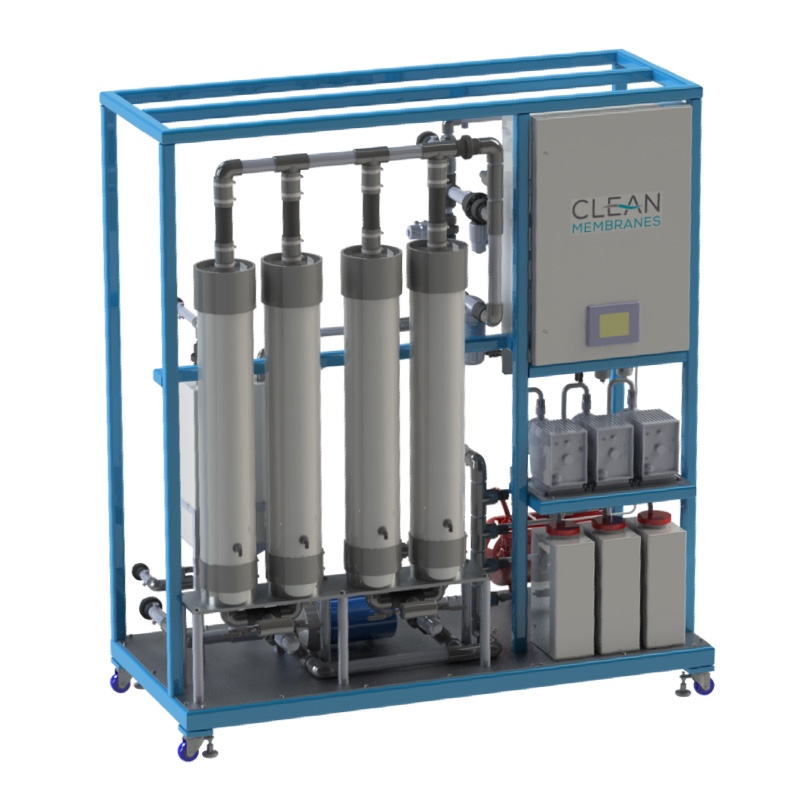

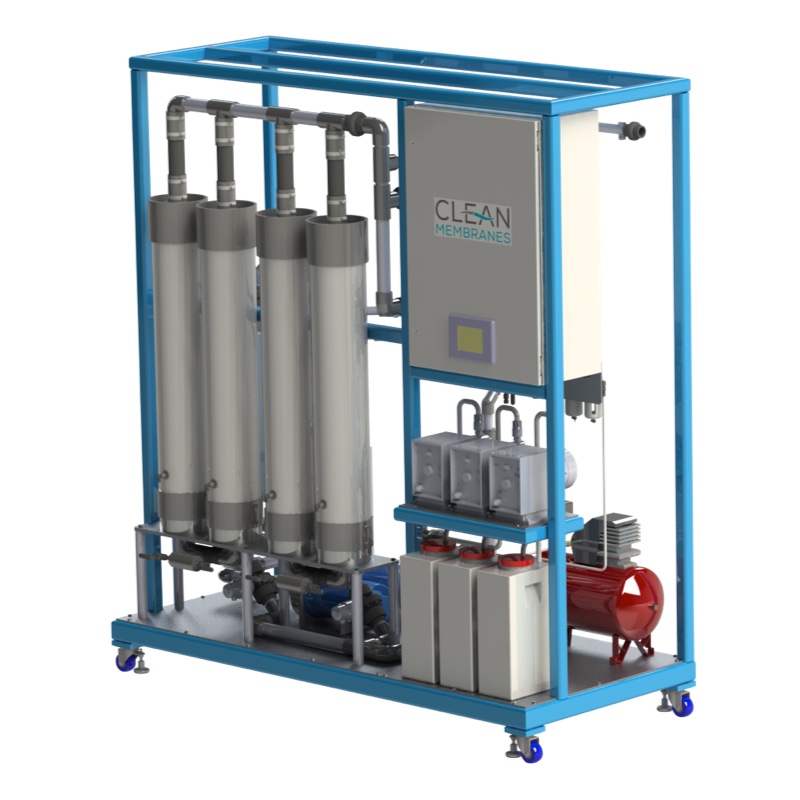

Image Gallery
Reduces operating costs associated with makeup water, heating, and sewage discharge by up to 90%
The SFBR System offers operational and environmental benefits for large pools and water parks. Makeup water and waste water are reduced significantly, along with the related heating costs.
SFBR System: Sized for Your Pool
- Pool Application (typical)
- Size Range 200,000 Gallons
- Description Water Park
- System Size (approx) 81"L x 43"D x 94"H
- Design Integrated Skid
- Membrane Modules 1
- Power 230 VAC 1-Phase
- Membrane: Hollow fiber modules; filtration from the outside to inside
- Material PVDF
- Pore Size (nominal) 0.03 µm
- Mode of Operation: Programmed sequential sand filter backflush
SFBR 100 Model
- Pool Application (typical)
- Size Range 330,000 Gallons
- Description 25 Meter
- System Size (approx) 81"L x 43"D x 94"H
- Design Integrated Skid
- Membrane Modules 2
- Power 230 VAC 1-Phase
- Membrane: Hollow fiber modules; filtration from the outside to inside
- Material PVDF
- Pore Size (nominal) 0.03 µm
- Mode of Operation: Programmed sequential sand filter backflush
SFBR 200 Model
- Pool Application (typical)
- Size Range 700,000 Gallons
- Description 50 Meter
- System Size (approx) 72"L x 34"D x 88"H
- Design Integrated Skid
- Membrane Modules 4
- Power 230 VAC 1-Phase
- Membrane: Hollow fiber modules; filtration from the outside to inside
- Material PVDF
- Pore Size (nominal) 0.03 µm
- Mode of Operation: Programmed sequential sand filter backflush
